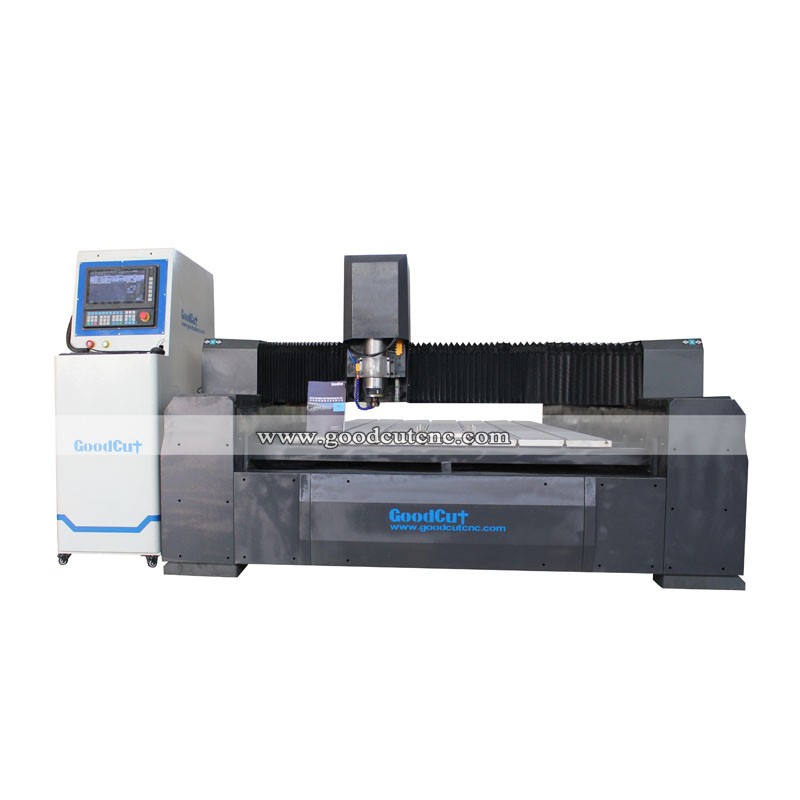

GC1540W CNC Stone Router for Marble Granite Engraving

Working area: 1500*4000mm
5.5kw/7.5kw water cooling spindle
Servo motor and driver
3 axis screw drive
material: aluminum copper

EMAIL



fEATURES

1. CNC stone engraving machine has a heavy-duty steel table, very durable, and stable, strong enough to hold heavy stone/marble/granite, and engraving or cutting it;

2. Stone engraving machine has CNC kits of a powerful water cooling spindle, perfect working for stone;

3. It has a DSP A11 controller, hand-held, no need connecting to a computer and it is easy to operate; when engraving or carving stone/marble, you'll find it is very convenient, esp for beginners;

4. All parameters and accessories can be customized according to processing requirements, you can choose different CNC kits for this stone engraving machine with the help of our sales manager; CNC Stone engraving machine is a CNC stone router, we also call it CNC marble engraving machine, it is good at engraving works on stone/marble, and is also able to carve or cut stones with different bits;

5.Machine designed reasonable design, fast processing speed, easy-operated maintenance and low fault rate.

PARAMETER

Features

Parameters

Linear Rail

Configure with Japan THK linear rail 25mm width

Package size

3460x2280x2080mm, Weight :2800KGS

X,Y working area

1500*4000mm, machine transmitting by rolling ball screw, high precision.

Z working area

170mm, Z axis with high precision grinding rolling ball screw.

Max. Moving speeding

30m/min

Work-holding

Standard with independent 4 zone matrix vacuum table with high strength

Control system

NC/DSP /Mach3 control system,

Spindle motor power

5.5kw/ 7.5KW water cooling high speed auto tool change spindle motor

Surroundings for software

Windows10/7/XP

Working voltage

AC 380V/50Hz-60Hz (Standard)

Main axis rotating speed

0-24000rpm/min

Work Mode

servo motor and driver, and Fuling inverter, speed control uniform and cutting edge smooth.

Machine structure

Adopt industrial heavy-duty structure under heat treatment

Dust cover

XY axis adopt totally closed dust cover design, Z axis with spindle protection cover

Software

New version Ucancam, type3

Warranty

One year without the tools

Optional device

Dust collection system

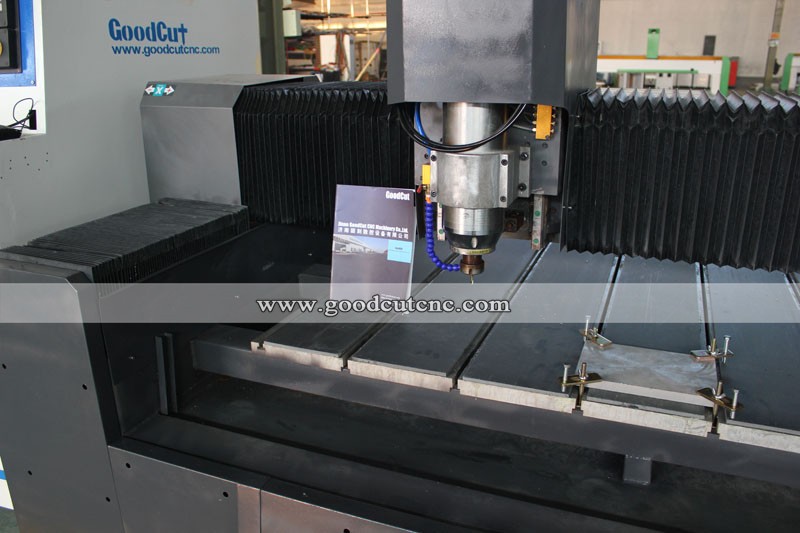

Machine details:

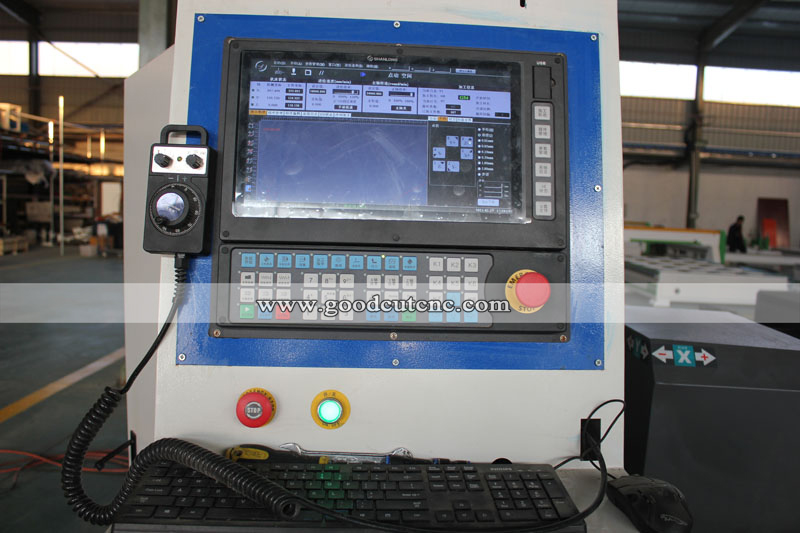

Controller: DSP, Mach 3, Weihong controller etc.


Mach3


APPLICATION

Its major functions include embossing, lettering, hollowing out, cutting, seamless stitching, milling, grinding, etc. So it has wide applications in garden engineering, inscription, stone sculpture, craft, and artwork industries.
