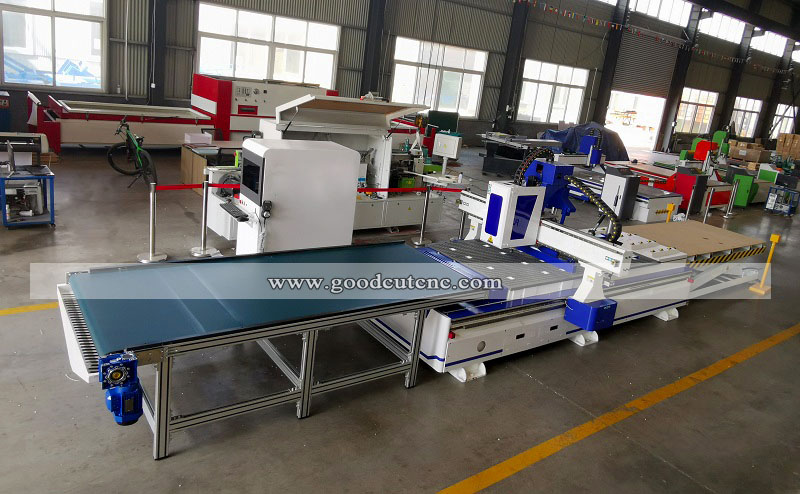

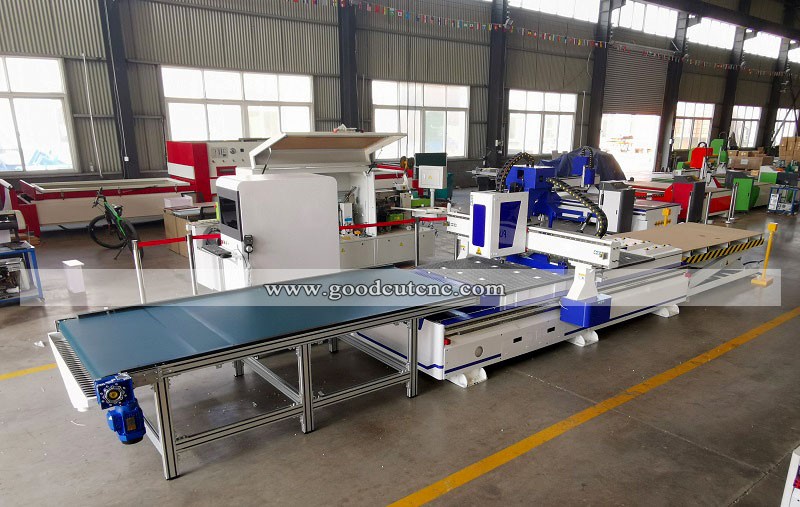

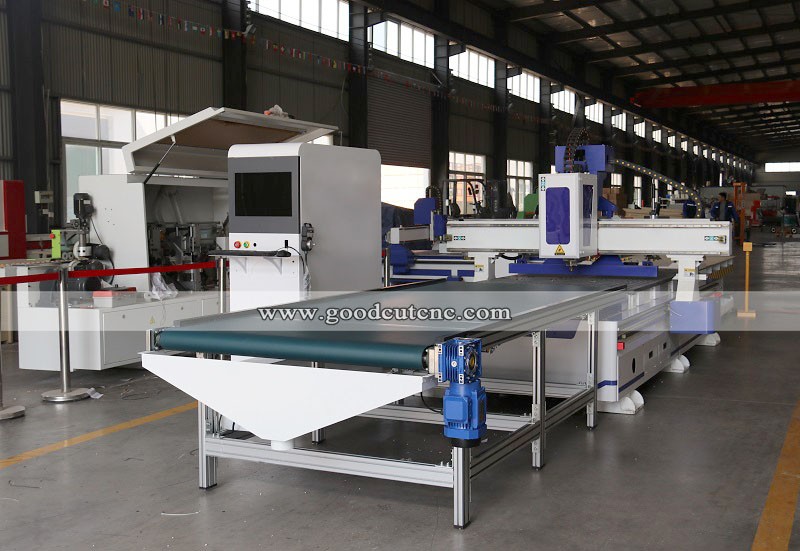

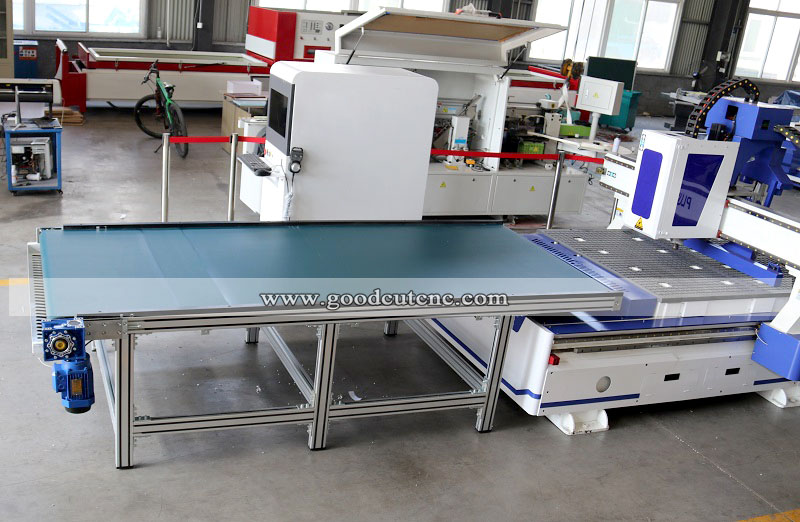

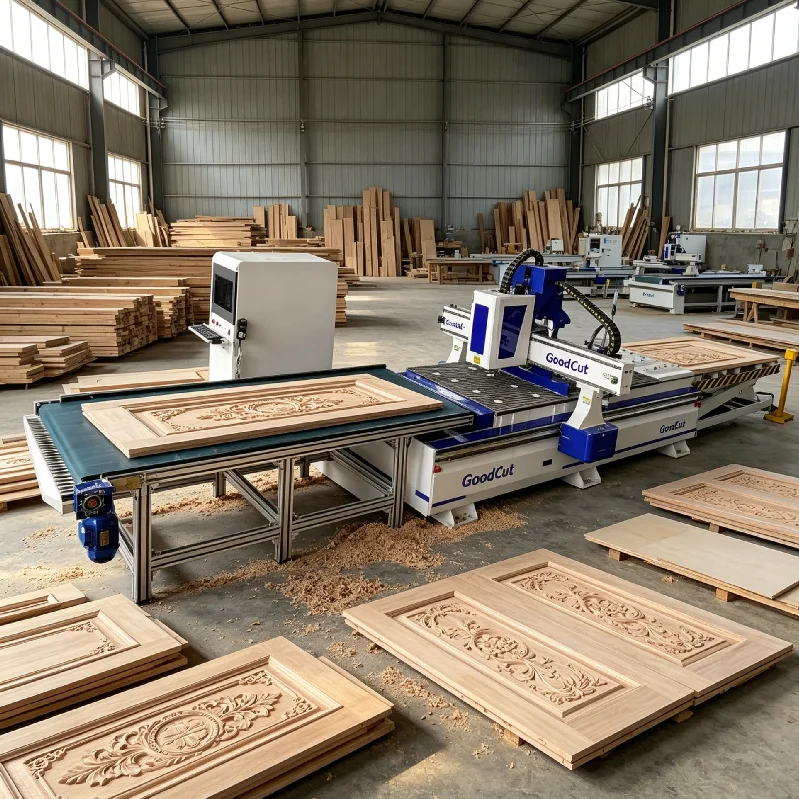

GC1325AF Nesting CNC Router Machine with Auto Load and Unload Device

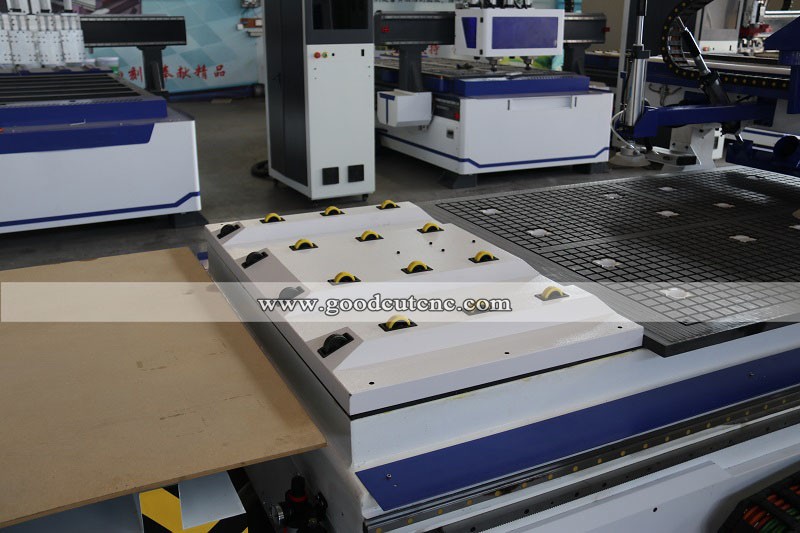

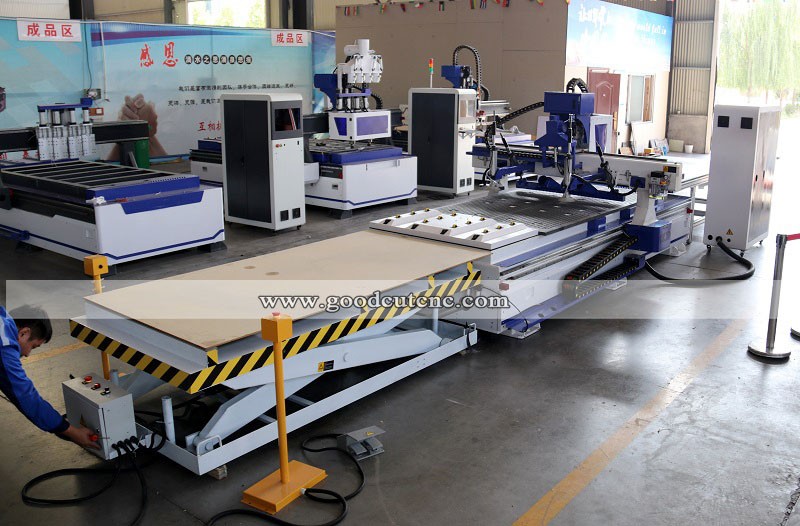

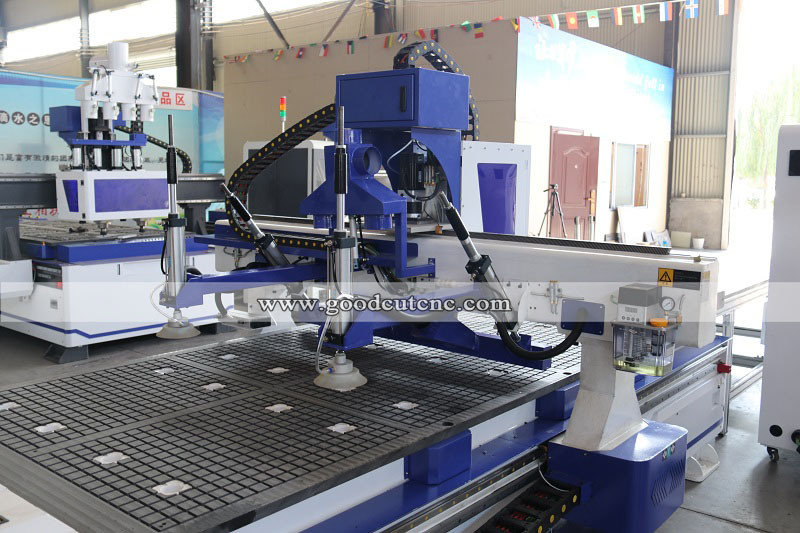

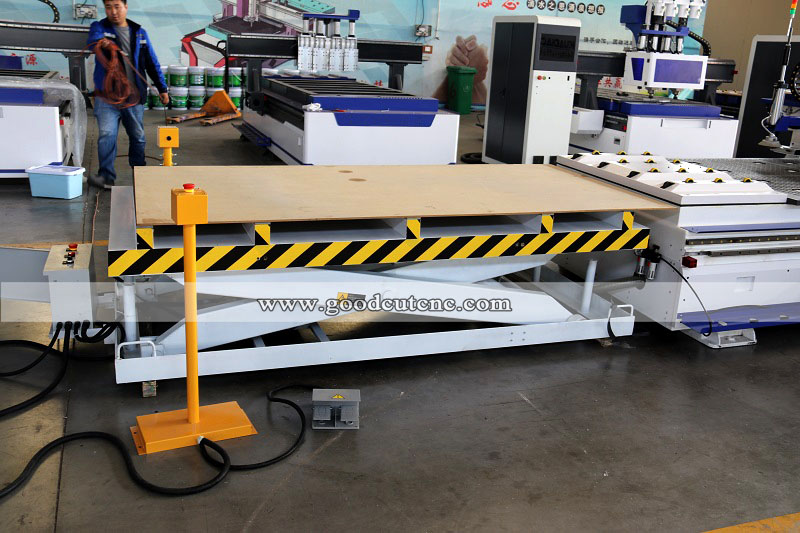

Auto load and unload device
Heavy duty frame
Vacuum absorbed table
1300*2500mm working size

EMAIL




fEATURES

GC1325AF auto loading and unloading CNC router,the purpose of the autoloader is to get more productivity out of the CNC without requiring more people.One person can still operate the machine,because all the materials handled automatically and it really makes it a much simpler job for the operator.


PARAMETER

ModelGC1325AF CNC Router
X-Y-Z axis working area1,220 x 2,440 x 200mm
Machine size2,200 x 3,600x2200mm
Repositioning resolution0.02mm
X-Y movementrack and pinion, gear drive
Z movementball screw drive/Taiwan
GuideLinear 25 square/Taiwan
Max. speed60,000mm/min
Max. cutting speed40,000/min
Spindle power9.6KW HSD  air cooling -Italy ISO 30
Auto tool changerservo motor carousel type
Spindle speed24,000rpm
Inverter power11kw Delta
Drive motorsYASKAWA servo motor 850W
Working voltageAC380V/50-60Hz, 3-phase
Command codeG code
Computer interfaceUSB 2.0
Tablevacuum table with 5.5kw pump
software  freeAlphacam,Alphacam copy
controllerSyntec 21A

APPLICATION

Its major functions include embossing, lettering, hollowing out, cutting, seamless stitching, milling, grinding, etc. So it has wide applications in garden engineering, inscription, stone sculpture, craft, and artwork industries.

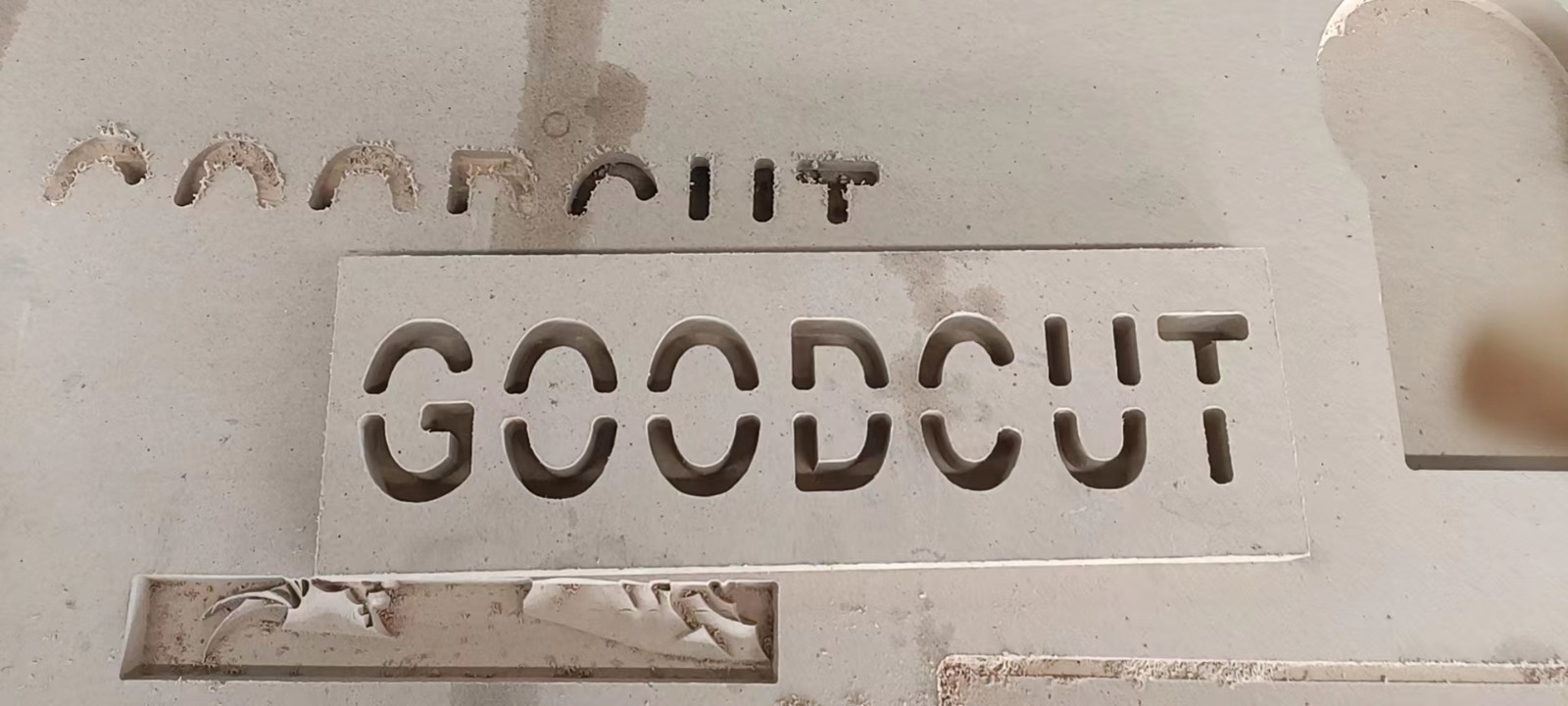

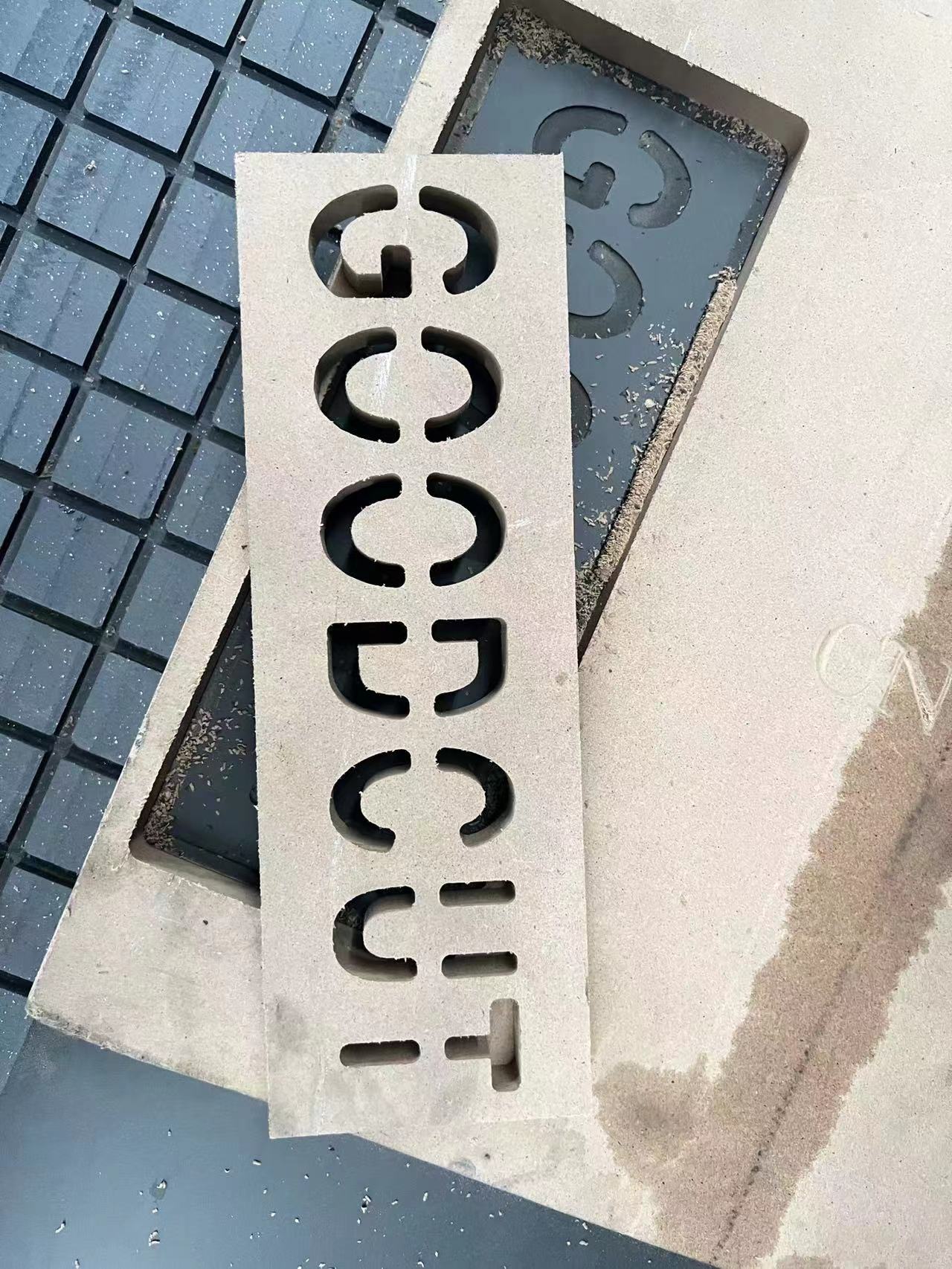

SAMPLE
